Rockey-ARM Encrypted Lock

Rockey-ARM Encrypted Lock – smart card security chip, ARM core

ROCKEY-ARM Encrypted Lock is a fast, high-security, and easy-to-use encryption lock. It utilizes a smart card security chip, an ARM core, and full-speed USB 2.0 communication. It allows for seamless switching between HID and CCID communication protocols without requiring driver installation. Integrating storage and encryption, it provides customers with a simple, fast, and one-stop encryption security service.

Product introduction

ROCKEY-ARM Encrypted Lock Dongle is a smart software and data protection product that includes hardware installed on a computer’s USB port or interface,

and a rich SDK development package, including API interface libraries for multiple programming languages, examples, user manuals and tool software.

ROCKEY-ARM Encrypted Lock are based on hardware protection technology, which aims to prevent the illegal use of intellectual property through the protection of software and data.
What can the encryption lock bring to developers? Software is not pirated. Protecting data from leaks or illegal use Easy to use remote upgrade

Provide rich software and data distribution mode (trial, rental, licensing, sub-module sales, etc.).

ROCKEY-ARM Encrypted Lock is a fast, high encryption strength, and easy to use encryption lock. It uses smart card security chip, ARM core, USB2.0 full speed communication.

Its distinctive features: user code is executed directly on the chip, no virtual machines, faster and more secure. Meet the encryption needs of different customers.

Product features

Hardware configuration

• Advanced low-power, high-performance ARM smart card chip
• Choose your own HID or CCID communication protocol
• Unique hardware serial number in the world
• Approximately 128K users use space
• Built-in RSA, ECC, 3DES, SHA1, SM2/SM3/SM4, non-public seed code algorithm, etc.

Complementary tools

Complete API interface, ROCKEY-ARM Encrypted Lock Setup Tool, Sub-Mule Production Tool, Remote Upgrade Tool, Shell Encryption Tool Provide a variety of solutions.

including VC, C#, Java, Delphi, VB, BCB, PB, JS and other multi-language platform development interfaces and sample programs, users can use the encryption lock reasonably and effectively, shorten the development cycle

Characteristics of function

• Provides three-level rights management (anonymity, users, developers)
• The code in the lock is executed locally, and the speed of the operation can be matched to the PC.
• Provides rich system call and development interfaces in the lock, and natively supports floating-point operations
• Supports multiple file types, key files, data files, executable files
• Provides network module, stand-alone lock and network lock free switching

Support for multiple platforms

• Support system platforms: Windows, Linux, domestic operating systems (UOS, Kirin, etc.), Android, macOS

Specifications

Specification	Details
Processor	High-performance ROCKEY-ARM Encrypted Lock based on smart card chip for secure cryptographic operations
Hardware Serial Number	Globally unique hardware serial number for device authentication and traceability
User Space	128 KB total (64 KB file system + 64 KB executable secure space)
Built-in Cryptographic Algorithms	RSA, ECC, 3DES, SHA-1, SM2, SM3, SM4, and proprietary seed algorithms
Read Cycles	Unlimited data reads for enterprise and industrial usage
Write Cycles	Minimum 100,000 secure write operations
Data Retention	Minimum 10-year secure data storage lifespan
Communication Protocols	Driverless HID and high-speed CCID with hardware-level USB encryption
Interface Type	USB Type-A hardware interface
Encryption Methods	API calls and shell encryption tools for software protection integration
Operating Voltage	5V ±5%
Operating Current	Less than 50 mA power consumption
Supported Operating Systems	Windows, Linux, Android, macOS, and domestic OS (UOS, Kylin, others)

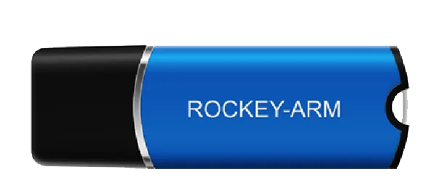

Appearance of ROCKEY-ARM Encrypted Lock

• ROCKEY-ARM default housing X8
• Appearance size 52.817.157.2 (with hat)
• Housing Material Aluminum alloy
• Total weight Approximately 7.2g

ROCKEY-ARM Encrypted Lock & USB flash drive lock

• Built-in 32GB or 64GB of removable storage.
• Supports virtual optical drives, USB flash drives, encrypted areas, and hidden areas.
• It supports multiple re-partitioning with fast partitioning speeds and provides API support for direct read/write operations on sectors.
• The virtual optical drive has a large capacity, loads ISO image files quickly, and is easy to operate.
• It incorporates RSA, ECC, 3DES, SHA1, national cryptographic standards SM2/SM3/SM4, and non-public seed code algorithms.
